1. Product functions

Ancel multi-functional live animal imaging system has powerful live tissue luminescence image analysis capabilities, which are used in fluorescence and chemiluminescence experiments of small animals. Even if the signal is weak, it can be captured, providing high-definition detection results for the experiment, and equipped with powerful software Teca-animal, can not only control Ancel, but also perform scientific analysis and processing of data.

2. Product Features

1. Super sensitive and clearer

• -100℃ ultra-sensitive deep refrigeration scientific research-grade CCD camera, ultra-low level of background noise, can be exposed for a long time to detect weak fluorescence and bioluminescence signals in animals, and combine with bright field phenotype images to perfectly express specific proteins and genes.Expression in living animals

• The pixel size of 13μm×13μm is larger and more complete, making the picture clearer and improving the picture quality

• It is specially equipped with a high-pressure water-cooling cooling system to ensure that the CCD camera works at low temperatures for a long time, avoid noise caused by high temperatures, and provide guarantees and methods for picture quality.

2. High performance, more comprehensive

• The 5-color LED fluorescent excitation light source lamp beads are arranged in a uniform shape, the light intensity can be continuously adjusted, and the excitation surface is more uniform. The fluorescent emitted light is used to ensure that the CCD camera receives more fluorescent signals.Applied to more fluorescence detection experiment requirements

• The gas anesthesia system can anesthetize up to 5 mice at the same time, and a partition plate is installed to avoid cross-interference between samples.It has activated carbon collection system to recycle anesthetic gas, avoid leakage of anesthetic gas, endangering the health of operators

• Qimatai has a life-sustaining temperature control system, and the temperature can be adjusted through the system to avoid adverse effects such as rapid body temperature loss during animal samples anesthesia.

3. Large space, more convenient

• Large field of view up to 340mm×300mm range, meets the placement of larger samples, improves sample throughput, and is faster to meet different sample needs.

• The maximum observation flux can be reached to 5 mice on the Qimatai at the same time, which is more efficient and time-saving.

4. Easy to operate and more secure

• The body comes with a control panel, and a large-size 4k high-definition LCD touch screen is selected to ensure a better view of the image and maximize the use of space.

• The two-speed height of the inspection platform is adjustable

• The device is simple to operate, comprehensive functions, intuitive interface, grading user permissions, no user number limit, making the operation faster

• Domestic independent research and development, complete replacement parts, timely and guaranteed after-sales response, and can provide prototype testing according to user application

III. Application direction

• Oncology-related research: tumor occurrence/development/metastasis mechanism, tumor immunity, tumor CART cell therapy, etc.

• Drug-related research: pharmacology, efficacy, pharmacokinetics, new drug development, targeted drug research, traditional Chinese medicine screening, etc.

• Cardiovascular and cerebrovascular research: mechanism of cardiovascular and brain diseases, treatment, etc.

• Stem cell research: stem cell induction, differentiation, disease treatment, etc.

• Research on animal models: tumor model animals, hypertensive model animals, obesity model animals, multi-label model animals, etc.

• Research on inflammatory diseases: infectious inflammation research, non-infectious inflammation disease research, etc.

• Materials research: biomaterial research, targeted carrier material research, nanomaterial research, photothermal collaborative treatment materials research, etc.

• Infectious disease research: research on the infection mechanism, treatment methods and effects of bacteria/viruses, etc.

• Food related research: food pollution, improvement and quality assurance, etc.

• Nucleic acid vaccine research: development of nucleic acid vaccines, etc.

• Gene expression research: specific target gene expression research, etc.

• Bone-related research: bone formation, osteoporosis, bone repair, bone stem cell therapy, etc.

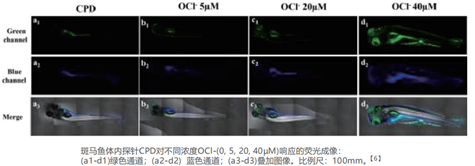

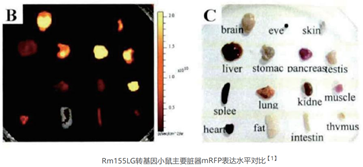

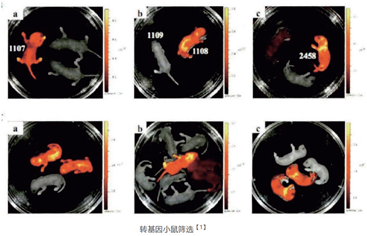

1. Gene expression research

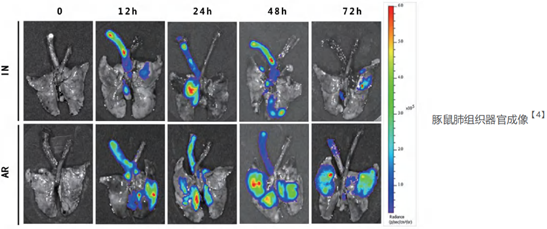

2. Scientific research on cardiovascular and cerebrovascular and other organs

3. Research on inflammation and diseases

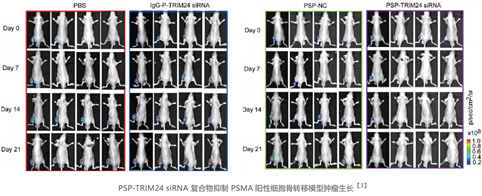

4. Oncology-related research

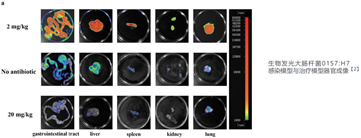

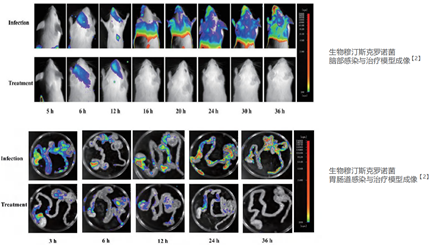

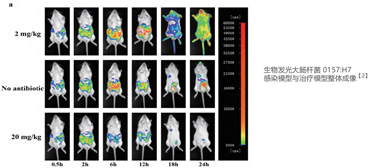

5. Infectious Disease Research

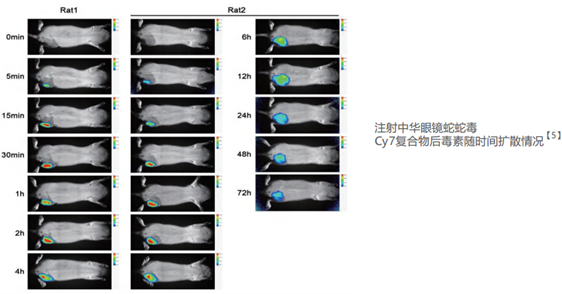

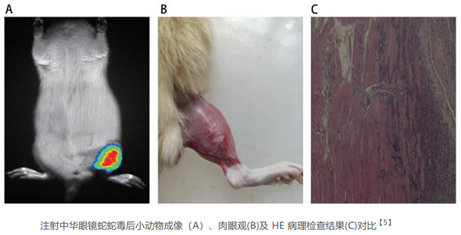

6. Viper Snake Research

7. Materials Research
