 | Andra Marine Guard Tide Level Meter is a rugged and powerful tide level recorder developed based on the Marine Guard platform.It can be used for self-contained measurement of tide level and temperature.At the same time, the instrument can also be used as a platform to expand to add other measurement parameters (such as CTD, sea current, dissolved oxygen, turbidity). |
| Features | |
| 1. High resolution, low drift | |
| 2. Small maintenance | |
| 3. Measurement interval is optional between 2s and 2 hours | |
| 4. Ocean Guard Visualization Software | |
| 5. The sensor is a smart sensor, plug and play | |
| 6. Optional RS422 communication, real-time XML format data output | |
| 7. A color touch screen board based on Windows system can easily configure the instrument without connecting to a computer. | |
| 8. Can be used for both seawater and fresh water | |
| The Marine Guardian Tide Level Meter uses a silicon pressure 5217 probe to measure the static pressure of the water body. The pressure measurement is obtained by temperature compensation of seawater measurement data through advanced digital signal processor. | |
| The working mode of the Marine Guardian tide meter is fixed installation, or installed on a shallow water seabed, or installed on a fixed structure in the water. It is typically used for measurement of port waves and tides, shipping weather forecasts, climate research and other quantities.The measurement of the tide is the average of the hydrostatic pressure over a period of time (10 seconds to 8 minutes, set by the user), with measurement intervals ranging from 2 seconds to 2 hours. | |
| The output parameters of the Ocean Guardian tide level gauge are tidal pressure, tidal level, pressure and temperature.The instrument directly calculates the tidal level data based on the fixed atmospheric pressure value and salinity value selected by the user.If the user has real air pressure and salinity data, it can also be corrected through post-processing methods.Tidal pressure is the average value of static pressure of water over a period of time. | |
| Because all temperature compensation and calibration data are stored in the sensor, the instrument directly outputs engineering data by default and does not require any external calculations.In addition, the instrument can also provide raw data on temperature and pressure measurements.The output data can be displayed and processed through the Ocean Guard visualization software. | |
| The Ocean Guard Tide Leveling Meter has two battery compartments, which can be used for long-term deployment, and can use Andra real-time data acquisition software for real-time data acquisition.The Marine Guardian Tide Gauge can be equipped with a conductivity sensor to calculate salinity, density and sound speed. | |

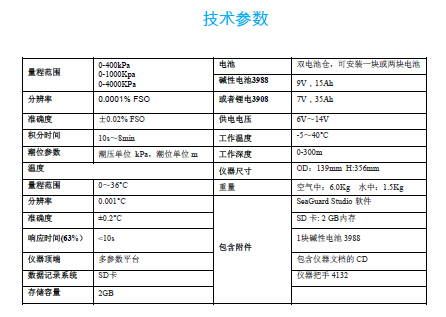

Note: Indicator parameters will change without notice.
