| The SAGA system is a system developed by ALCI that can automatically analyze seed traits in real time. The SAGA system can analyze seed morphological characteristics, morphological classification, germination speed and germination rate with high throughput. The data is stable and reliable and has high repeatability. The SAGA systemFully compatible with Jacobsen germination beds, ALCI is a leader in visual embedded robotic systems designed to provide customers with advanced vision solutions needed to process and convert diverse products, ALCI provides measurement and quality control for extremely complex needs. |  | ||||||||
| Application areas |
Measurement of seed germination rate
Seed morphology classification | ||||||||
Suitable for the study of seed traits of durum wheat, corn, alfalfa, rice, millet and sorghum, and other species can also be customized according to the research needs. | |||||||||
| Measurement parameters | |||||||||
youIt can automatically analyze and classify up to 10,000 seeds at the same time youSeed morphology analysis, including parameters such as size, color, shape and radiculogenic morphology youFor single seeds, measurement and analysis can be made: ²Seed shape, accuracy of +/-0.1mm ²Germination rate, seed grading youAnalyze germination force, germination time, germination rate, germination potential and germination rate, etc. youGermination rate: Four states: "dry seed", "swelling", "germination" and "unmeasurable" can be recorded simultaneously. youEmbryo growth dynamics | |||||||||
| System Features |   | ||||||||
youData is stored in the database, and all images can be stored in the form of metadata by time. youData can be extracted in a classified manner and presented in table form according to the user's definition of photos. youProvide photos for each area (formats A5 to A2) youSeed germination rate can be output through FGP, MGT, FDG, LDG, CVG, GRI, GI and TSG | |||||||||

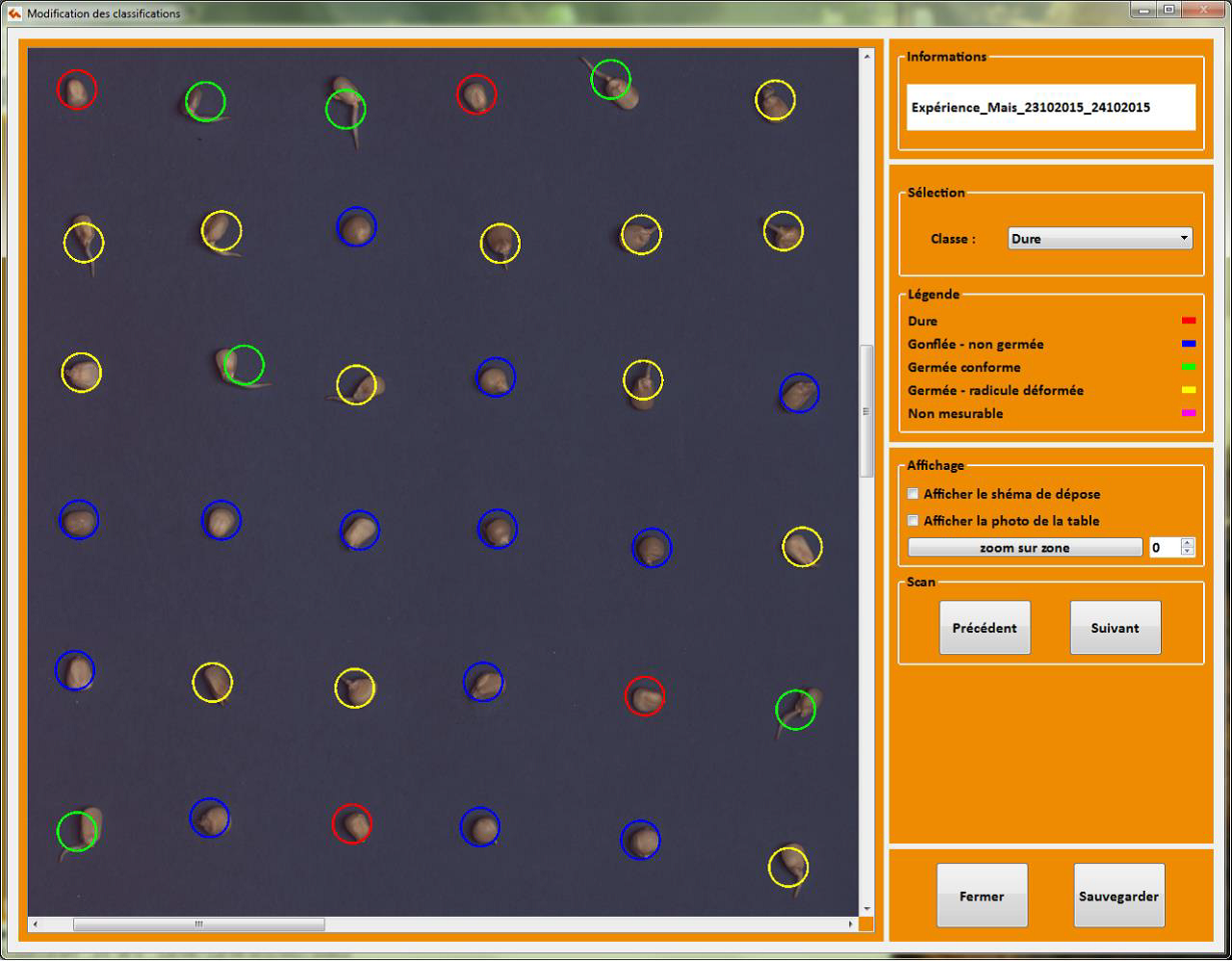

| Operation software |  | ||||||||
The operating software is a visual system youThe software has an automatic teaching model, which provides great flexibility for integrating new seeds or new absorbent paper. youIt has remote maintenance and diagnostic modules, and the system can be updated automatically. youThe software integrates the analysis, recording and hierarchical processing functions of image data. youData traceability youThe data for each experiment are recorded and graded for later query. | |||||||||
| Equipment parameters |  | ||||||||
youManagement System ²SIEMENS S7-1200 Automation System ²21-inch color IHM display youImaging system: three high resolution lenses youExpert System (ALCI Software): Processing of visual data, and analysis, recording and classification youLoading and unloading ²Upstream: Use special tools to complete it manually ²Downstream: Use the tool to complete it manually youTraceability: View test data and classification through metadata youBasic dimensions: 3.3 m x 1.2 m x 2.0 m youElectricity parameters: voltage 230 V; power 2.6KW (stable operation through transformer) youJacobsen germination bed: temperature control accuracy is 1℃, no ultraviolet emission function | |||||||||
