Main functions

Measure the water potential of plant leaves or twigs.Place the leaves or twigs from the sample holder into the sample chamber with the cutting protrusion until the pressure in the plant material exceeds the tension and the leaf flow begins to flow out from the cutting head, and then creates pressure indoors that can be directly from the pressure gaugeRead out.

The 3005 plant water potential pressure chamber has a pressure gas tank, which is especially suitable for use in the field.The hardwood sample preparation table was installed onto a heavy duty aluminum chassis.The 3005 has a variety of sealing gaskets (18-52 cm) to ensure absolute sealing of the sample chamber during the experiment.The 3005 can provide two pressure ranges of 0-40bar or 0-80bar.

Application areas

It can reflect the overall water physiological status of plants and is widely used in research fields such as plant physiology, agronomy, irrigation, crop cultivation, plant nutrition, etc.

System composition

The 3005 plant water potential pressure chamber has air supply equipment, consisting of four parts: A, B, C, and D.

A- Pressure chamber

* Pressure chamber, 7" (18 cm) high

* Pressure chamber, 12" (30 cm) high

* Pressure chamber, 20" (51cm) high

B- Sample Fixer

* 3015G2 sample holder for fixing lanceolate leaves with width up to 2.5 cm

* 3015G4 sample holder, used to fix round petioles with diameters ranging from 0.08 cm to 1.27 cm and short petioles with diameters of 1.27 cm, can also be used for lanceolate leaves with widths of 1.27 cm and the midveins of larger leaves.

C- Pressure gauge,Specify pressure range

* Pressure gauge, range of 0 to 40 bar

* Pressure gauge, range of 0 to 80 bar

D-Stent,8" and 32" interchangeable

* 8" (20 cm) bracket (1 group of 4)

* 32" (81 cm) bracket (1 group of 4)

Sealing gasket

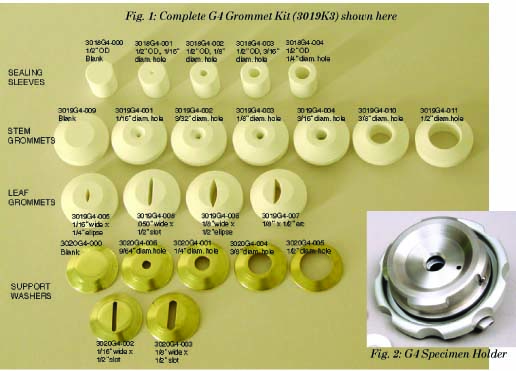

3015G4Sample holder and gasket

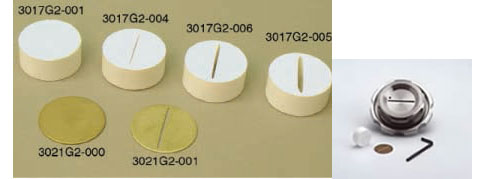

3015G2Sample holder and gasket

Origin:US SEC
