 | The turbidity sensor 4112 is used to measure turbidity in water.The sensor is designed to be integrated into the Andra Marine Guard platform for analog signal output from 0-5V. It has 4 ranges to choose from, and one of them can be installed directly on the sensor disk on the top of the Marine Guard platform. | ||||
| Features | |||||
| 1. Optical sealed sensing volume | |||||
| 2. Insensitive to ambient light underwater | |||||
| 3. Linear output over 5 years | |||||
| 4.A range of ranges available | |||||
| 5. Optical feedback compensation for temperature drift and aging of optical components | |||||
| 6. Extremely low voltage drift, no adjustment required | |||||
| 7. Extremely low power consumption | |||||
| application | |||||
| 1. Pollution monitoring | |||||
| 2. Surface water and wastewater quality monitoring | |||||
| 3. Sediment migration | |||||
| 4. Ocean profile monitoring | |||||
| 5. River and stream monitoring | |||||
The turbidity sensor 4112 measures the turbidity by measuring the scattered light from the water particles. Since the turbidity of the water body has a good correlation with the concentration of suspended matter in the water, it is usually monitored for sediment, algae and water particle contamination by measuring the turbidity..The sensor output signal is a voltage signal, and the strength of the signal is proportional to the turbidity of the water or the concentration of suspended substances. | |||||
The turbidity sensor 4112 consumes very low power, so it is very suitable for applications with limited power supply.The sensor drifts between 0 and 1mV and there is no need to adjust the gain.The sensor's unique optical design makes its measurement sensitive area within 5cm from the probe, so it can be used for measurements close to the bottom, especially for some application areas that are more affected by reflection. | |||||
The turbidity probe 4112 can be directly installed on the sensor disk on the top of the Ocean Guardian platform. The sensor output is an analog output. After being connected to the Ocean Guardian platform, the output data from the Ocean Guardian platform is engineering data. | |||||

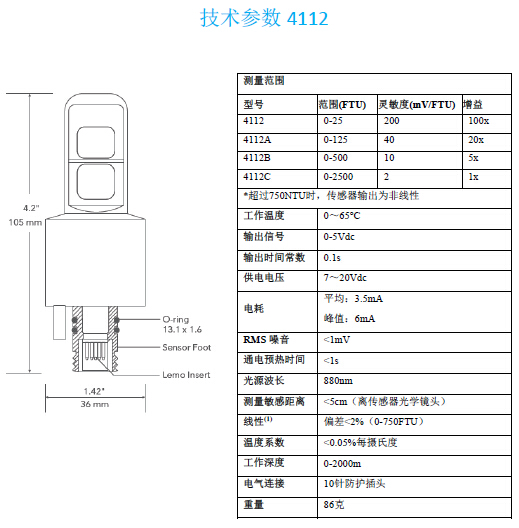

Note:(1) The calibration range of the sensor standard is within the linear range of turbidity0-750NTU, If you need a higher concentration, please give special instructions to the manufacturer when ordering.
(2) Indicator parameters will be changed without notice.
