Multi-channel profile radiation measurement,cosineradiation
The BIC radiometer from BioGlobe Instruments is a concentrated version of the well-known PUV/GUV and PRR instrument systems.BIC SeriesUsed for measurementCosine radiation.include3 single wavelength and photosynthetic effective radiation (PAR, 400-700 nm).The wavelength can be selected from 305 nm of UVB to 875 nm near the near infrared region.The photodetector of BIC is made of Teflon, which can ensure the accuracy of long-term work.BICs can provide underwater sensors and surface sensors.

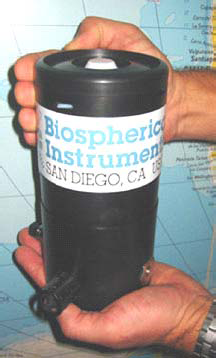

BIC (planar shape) for measuring Cosine radiation

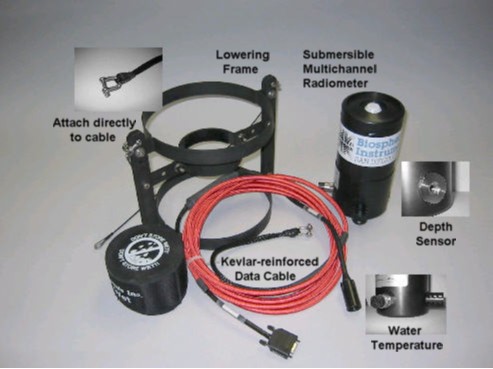

An underwater BIC with integrated temperature and pressure sensors (optional) works with a corresponding surface BIC that provides a vertical profile of solar radiation within a water depth of 100 m.
The BIC is very lightweight and its dynamic range (greater than 5 levels) design can meet the needs of different underwater working environments.

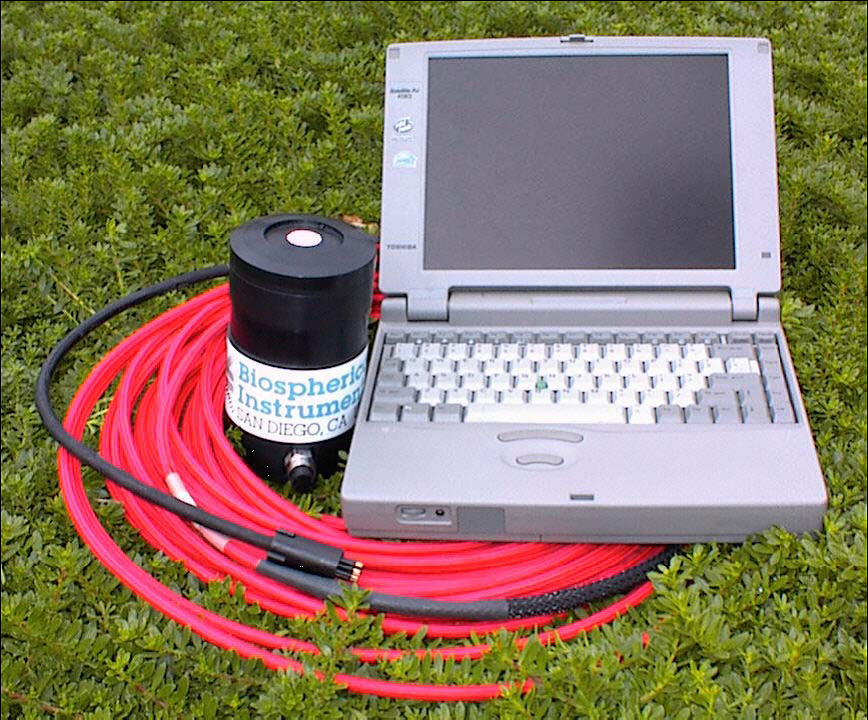

The BIC itself does not require a battery!After the BIC is connected to the computer, all data collection tasks are carried out through the computer.Work with LOGGER software based on Windows operating system.
Key Features ComeMeasure Cosine radiation, including 3 (user-selected) bands and PAR (400-700 nm) ComeUse the serial port to directly connect to PC or digital cable ComeSuitable for underwater profile analysis and remote monitoring in the field ComeOptional water temperature and water depth sensor ComeDigital acquisition software based on Windows operating system |  |
Technical parameters
Data acquisition and communication The BIC uses the serial port (RS-232) to directly connect to the PC or digital cable.The output signal of the photodetector is converted by 24-bit A/D and is quickly transmitted to the computer in binary.Using a serial port, data of 9 different BIC or BIS sensors can be obtained simultaneously. At this time, a DSM-2100 digital signal multiplexer is required. powered by This system consumes very low power, with power consumption of less than 2 mA per channel.A BIC or BIS consumes less than 12 mA. Sensitivity and dynamic range Noise equivalent irradiance is 10-6withoutECM-2yes-1.The maximum irradiance in the air is generally 0.45withoutECM-2yes-1.The dynamic range that the instrument has is affected by the measured wavelength and the average time of the data acquisition system.When data is collected directly without evenly, the instrument has a dynamic range of 5 levels; when the average data time is 10 s, the instrument has a dynamic range of 6 levels. Accessories that require separate orders 305 nm filter/photodetector; water temperature and water depth sensor; BIC or BIS underwater bracket; QSC-2100 underwater cable; QSC-2145 surface cable; DSM-2100 digital signal multiplexer. Optical properties Optional measurement wavelength: 305, 313, 320, 340, 380, 395, 412, 443, 455, 465, 475, 490, 510, 520, 532, 555, 565, 589, 625, 665, 670, 683, 694, 710, 765, 780, 875 nm and PAR (400-700 nm) (Please contact us for special wavelength requirements) bandwidth: Except for 305 nm, standard 10 nm FWHM Filter type: Low fluorescence interference filter cosineOr ScalarCurrent collector: Teflon-coated quartz.Underwater BIC or BIS are designed for underwater use Response value:0°-65°hour:±2%; 65°-85°hour:±10% |  |
UnderwaterB IC
diameter:10.2 Smart
length:20.0 Smart
Maximum working depth:100 No
Material:PET plastic shell
weight: 2.0 Kg in the air
Ambient temperature range:0℃～+50℃
water surfaceB IC
diameter:10.2 Smart
length:20.0 Smart
Material:Aluminum alloy
weight: 3.0 kg
Cosine current collector: Teflon-coated quartz.Surface BIC or BIS are designed to be suitable for use in the air.
Ambient temperature range: -10℃～+50℃
