Main functions |  | ||||||||

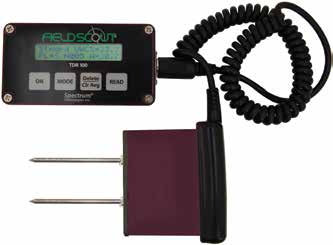

The TDR 100 uses time domain reflection technology to obtain soil moisture readings with one click. It is a very portable soil.The moisture speed measuring instrument can measure soil moisture at different depths by selecting measuring probes of different lengths. The probes are available in four types: 3.8cm, 7.5cm, 12cm and 20cm. | |||||||||
| Application areas |  | ||||||||

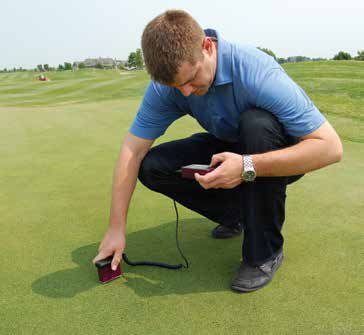

In fields, greenhouses or laboratories, rapid on-site measurement of soil moisture content is applied to soil moisture research,Research on drought monitoring, irrigation decision-making, SPAC and other fields. | |||||||||
| System composition |  | ||||||||
| Probe, host, portable suitcase, battery. | |||||||||
| Technical parameters |  | ||||||||
Measurement principle: time domain reflection technology Unit of measurement: Volume moisture content (percentage) Measurement range: 0-50% (usually the soil can reach saturation at about 50% of the volume of water content) Measurement accuracy: ±3% when conductivity <2mS/cm and clay content <30%. Resolution: 0.1% volume water content power supply:4indivualAAABattery, use about12Months Probe size:7.8 Smart×7.5 Smart×2.5 Smart Reading table size:10.5 Smart×7 Smart×1.8 Smart Probe size: diameter0.5 Smart,spacing3.3 Smart weight:0.68 Viewed | |||||||||
| Origin:USAspectrum | |||||||||
